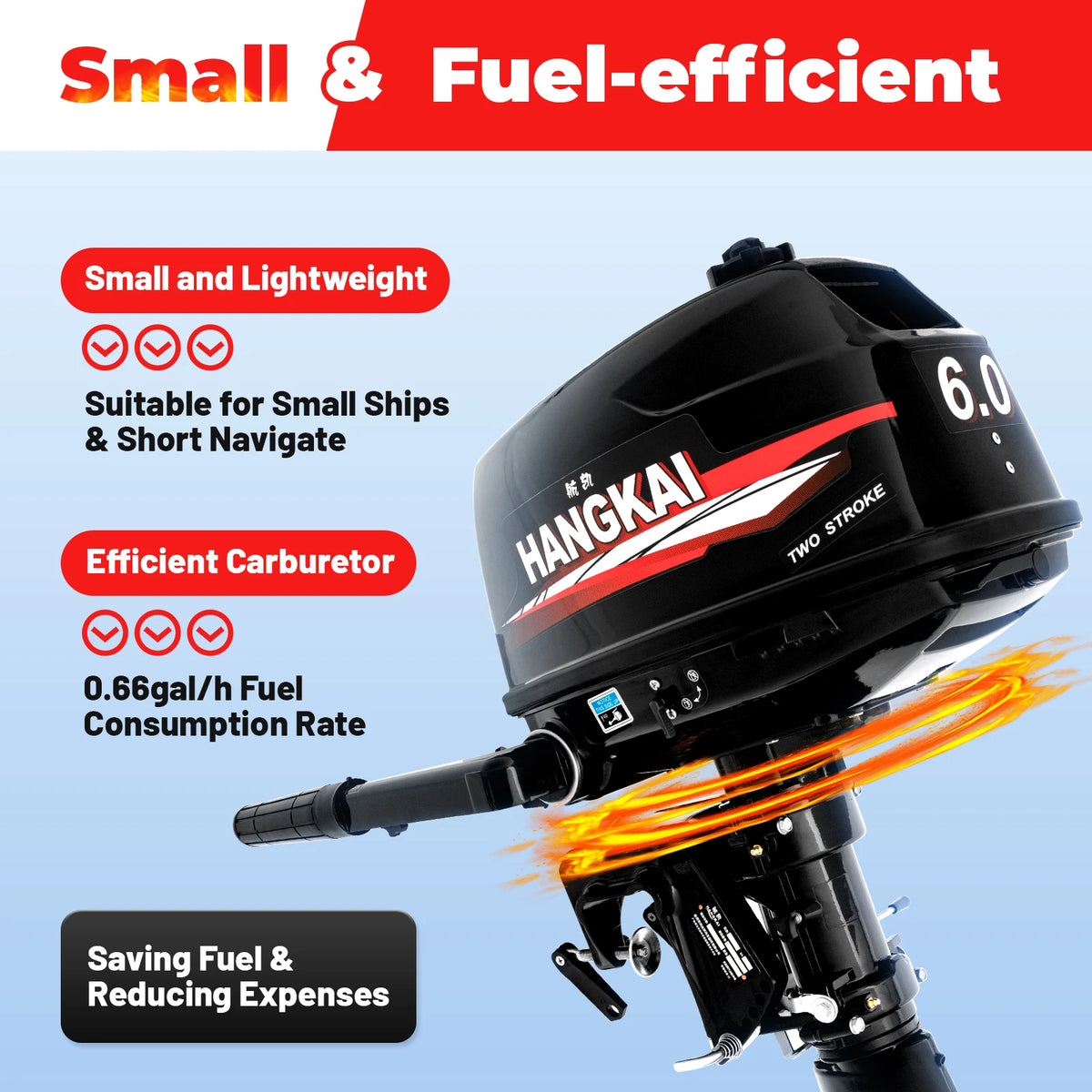

Model |
Two Stroke 6HP |
Engine Position |
Outboard |
Displacement |
102CC |
Cylinder |
1 |
Max. Output |
4.4kw |
Full Throttle Operating Range (rpm) |
4500-5500 |
Idling Speed |
1000±100r/min |
Gear Positions |
F-N-R |
Ignition System |
CDI |
Starting System |
Manual Start |
Trim and Tilt System |
Manual Tilt |
Control System |
Tiller Control |
Cooling Method |
Water-cooling |
Recommended Outboard Engine Oil |
2-Stroke Outboard Engine Oil |
Recommended Gear Oil |
Professional Gear Oil |
Gear Oil Volume |
195ml(6.6 fl.oz.)(Cut off by Pressing the Button on the Carburetor) |
Thrust |
300-750kg/661-1653lbs |
Speed |
20-10 km/h ( Depending on the Environment, Water, Hull Load) The heavier the Load, the Slower the Speed. |
Spark Plug |
25.0Nm(18.4 ft-lb) (2.55 kgf-m) |
Engine Oil Discharge Bolt |
18.0Nm(13.3 ft-lb) (1.84 kgf-m) |
Gear Ratio |
2.08 (27:13) |
Mixed Rating |
Fuel:Oil (50:1) |
Standard Fuel Tank Capacity |
12L Within 2.5L |
Bore×Stroke |
5.5*4.3cm/2.17*1.69" |

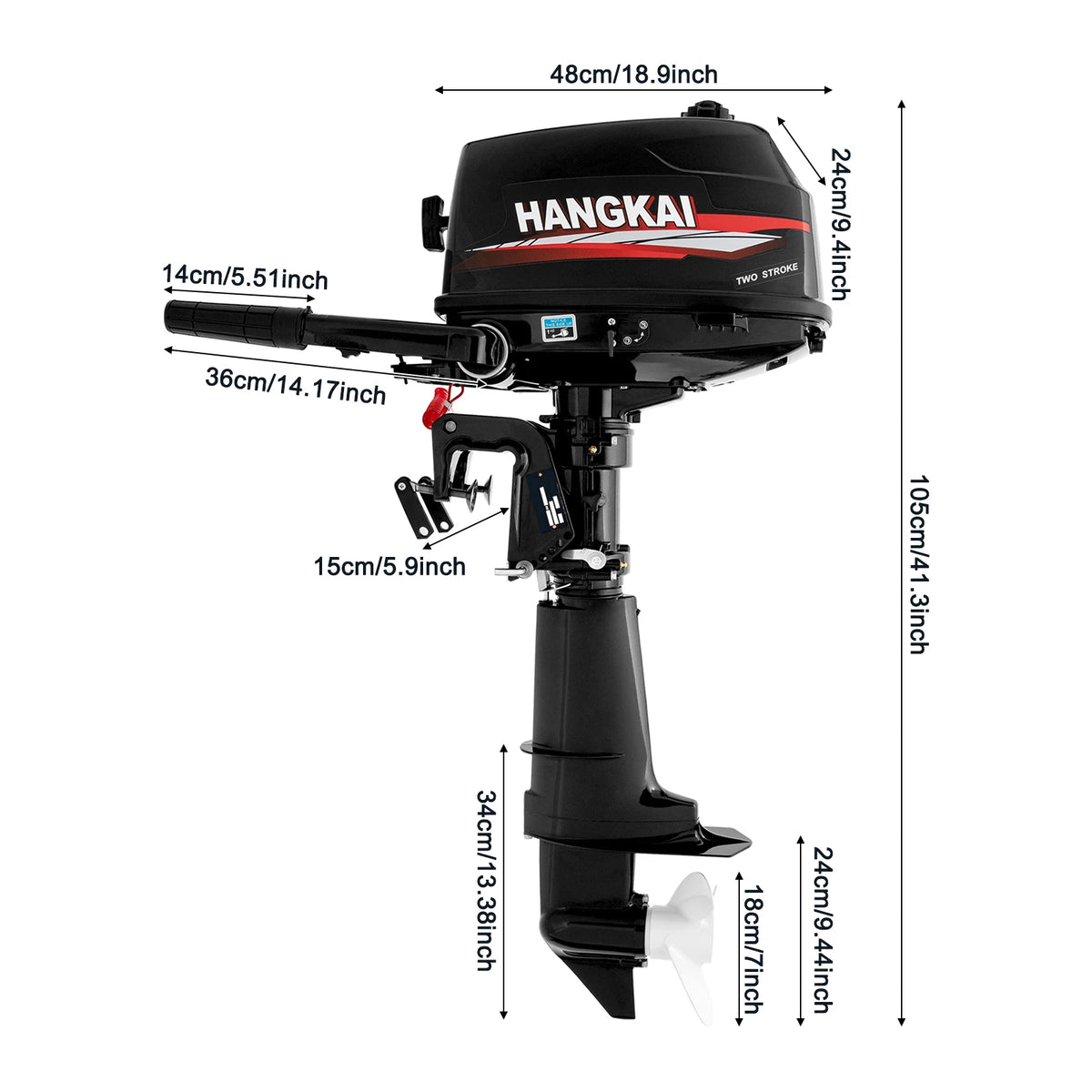

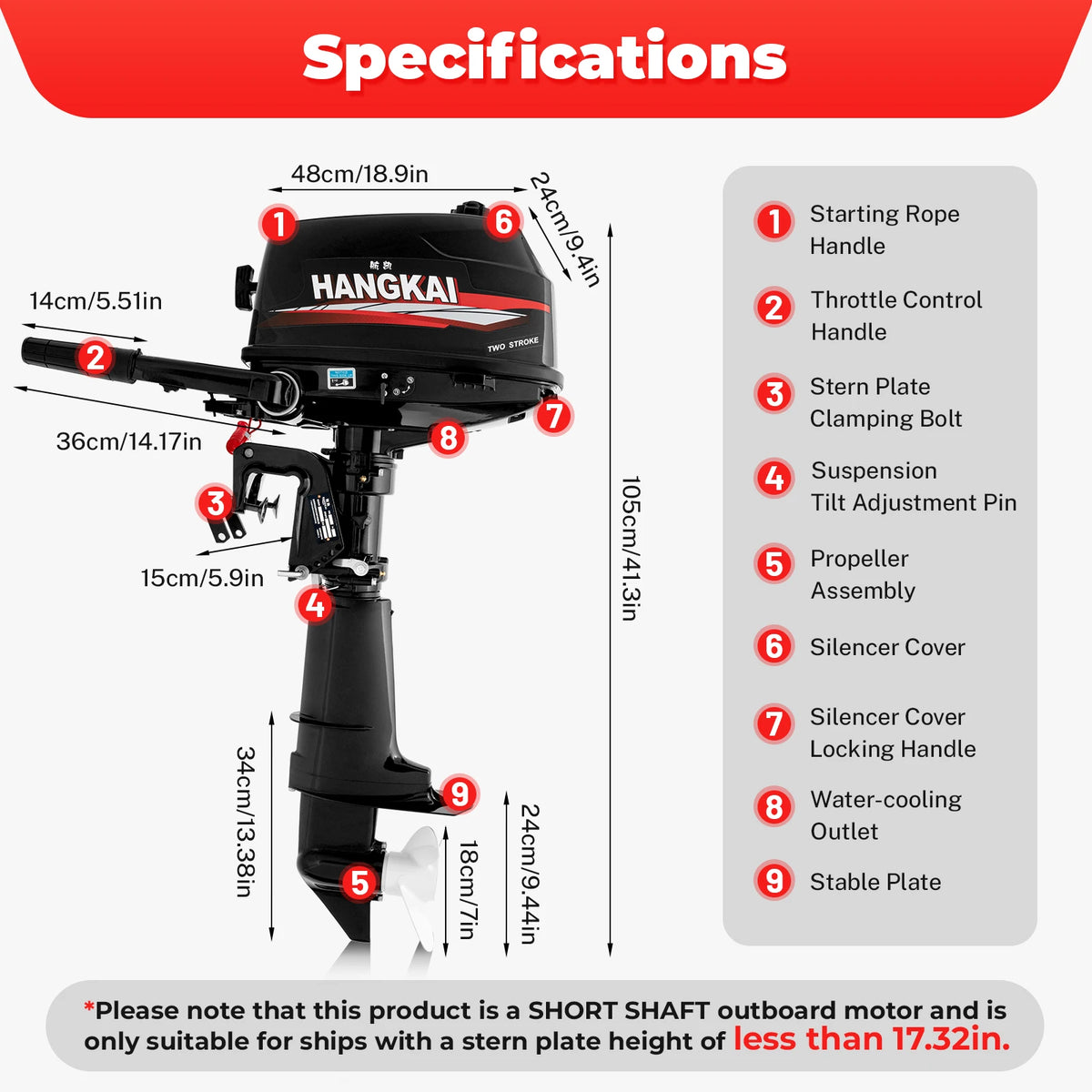

Dimensions |
49*32*106cm/19.29*12.6*41.73" |
Package Size |
112*62*38.5cm/44.09*24.41*15.16" |
Net Weight |
20.74kg/ 45.72lbs |
Gross Weight |
25.9kg/57.1lbs |
